These directions apply to Redbird devices using Redbird Navigator. For Redbird Jay and Jay Velocity users, we recommend using the C172 aircraft when launching a flight to improve compatibility and the setup process.
Setting up my Redbird with PilotEdge for SimVenture 2025
Installation and Setup Instructions
- You will need a Trial or Active PilotEdge account to participate in SimVenture with your Redbird. For more information on how to create a Trial PilotEdge account, you can go to https://www.pilotedge.net/join.
- Once you have set up your PilotEdge account, you will next need to download the Scenery and NOTAM packages from the Prepar3D & FSX SimVenture Downloads page and follow the installation instructions from https://pilotedge.net/pages/fsxp3d-simventure2025 on the PilotEdge website.

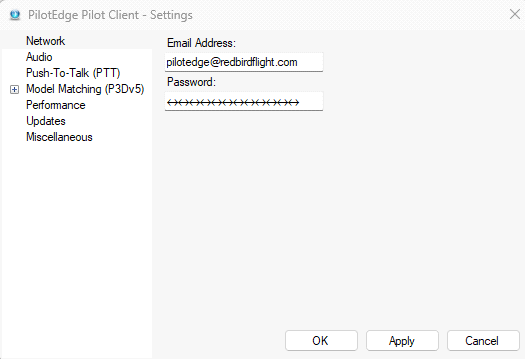

- Once PilotEdge is installed, log in using the PilotEdge account credentials you used when creating your PilotEdge account to finish configuring PilotEdge.

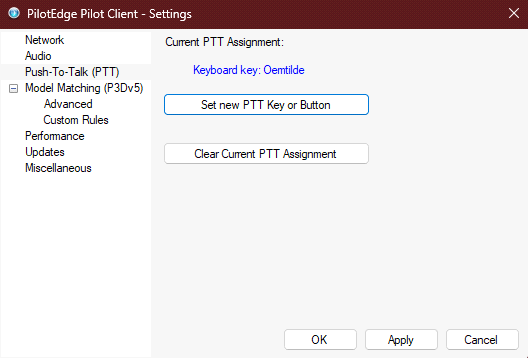

- First, you will need to configure your PTT. Your Redbird's PTT is mapped by firmware, but you will still need to assign a key to this function. We recommend using the "~" key since it is generally unused on a Redbird device.

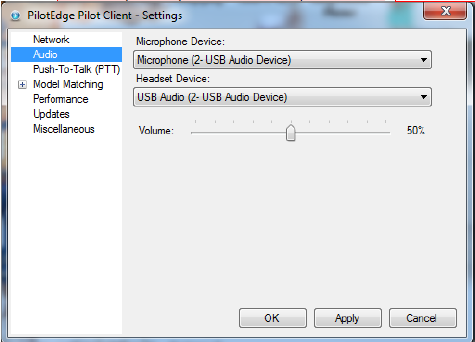

- Next, make sure your communications device is properly assigned and configured. PilotEdge recommends "A headset to use with your computer flight simulator (USB headset, 3.5mm headset, or real-world aviation headset adapter". If you want to use your aviation headset with your Redbird device, we recommend checking out the Redbird Aviation Headset Connect (https://retail.redbirdflight.com/products/redbird-aviation-headset-connect).
- You should not have to edit the Model Matching or Performance from the PilotEdge Pilot Client - Settings window. Just hit Apply and OK.

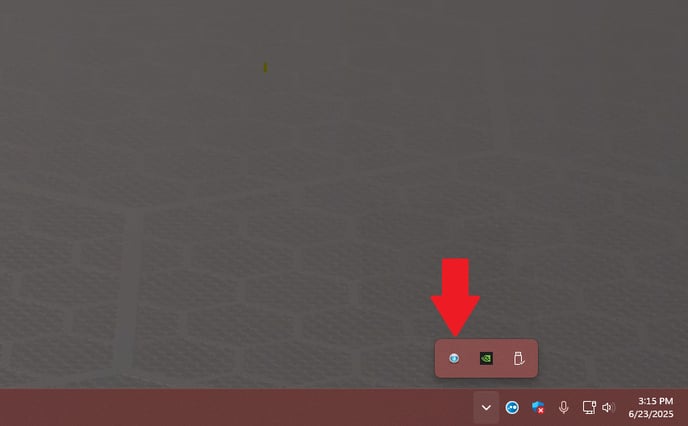

- You should now see the PilotEdge icon in your Taskbar/System Tray.

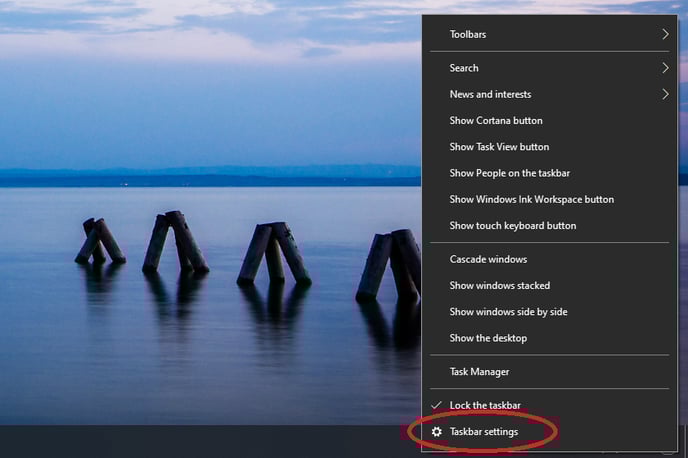

- Right-click on the Taskbar and select Taskbar settings

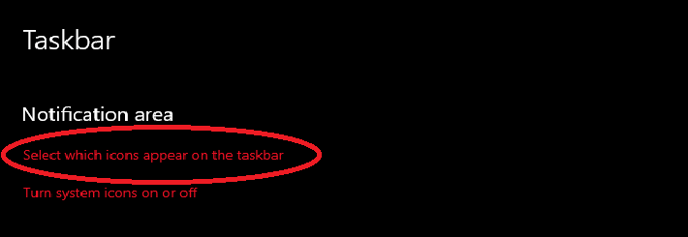

- Next, scroll to the Navigation area and click Select which icons appear on the taskbar

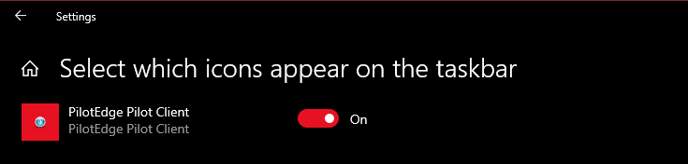

- Then, locate PilotEdge Pilot Client and make sure it is turned On to appear in the taskbar and verify again that the PilotEdge icon is in the Taskbar/System Tray.
- Next, we recommend creating a scenario for Redbird Navigator to start you on the ramp at KMSN in Madison, WI. We've made this easier for you by making a downloadable file with this already done.
- Download - KMSN Ramp.zip (Click to download)
- Extract the folder KMSN SimVenture 2025 from the download into the C:\Redbird\Missions\Saved Flights folder

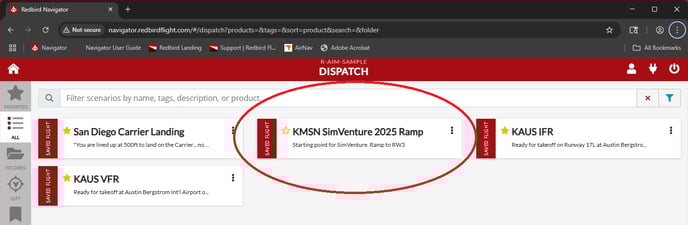

- You should now see the mission KMSN SimVenture 2025 Ramp on the Dispatch screen in Navigator
Connecting my Redbird to PilotEdge for SimVenture 2025
Pre-connect Check List
- Make sure your Redbird is up and running with the flight launched. We recommend using the KMSN SimVenture 2025 Ramp saved mission as a starting point.
- Need assistance launching flights? Check out our Navigator user guide - https://support.redbirdflight.com/navigator-user-guide
- Make sure P3D is unpaused and running with the aircraft loaded and parked on the ramp (not on a runway or taxiway).
- Make sure the PilotEdge Pilot Client is running.
- Look for the PilotEdge Pilot Client in the System Tray

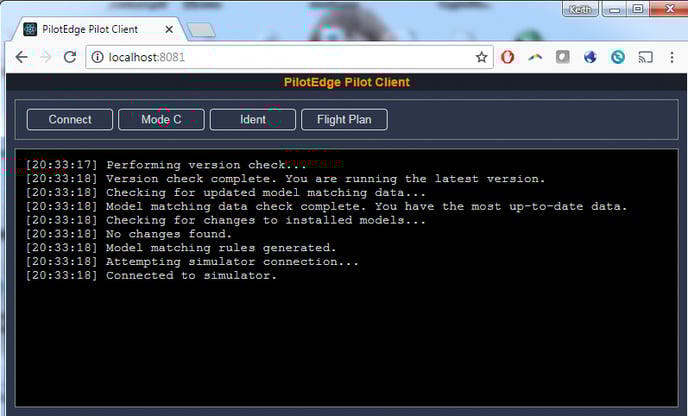

- PilotEdge Pilot Client will open a browser window, and it should look something like:

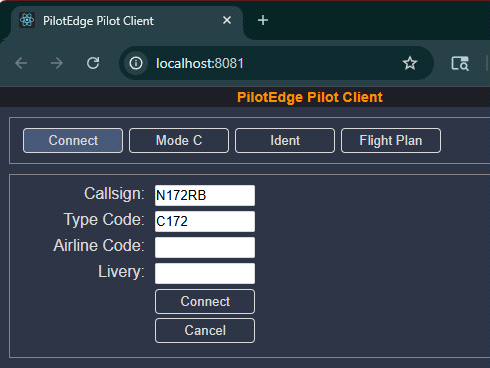

- Enter your unique Callsign, we recommend using C172 or C182 for Type Code
- You're all done. Just click Connect and you're on your way to KOSH for SimVenture 2025!
